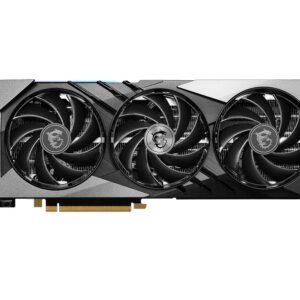

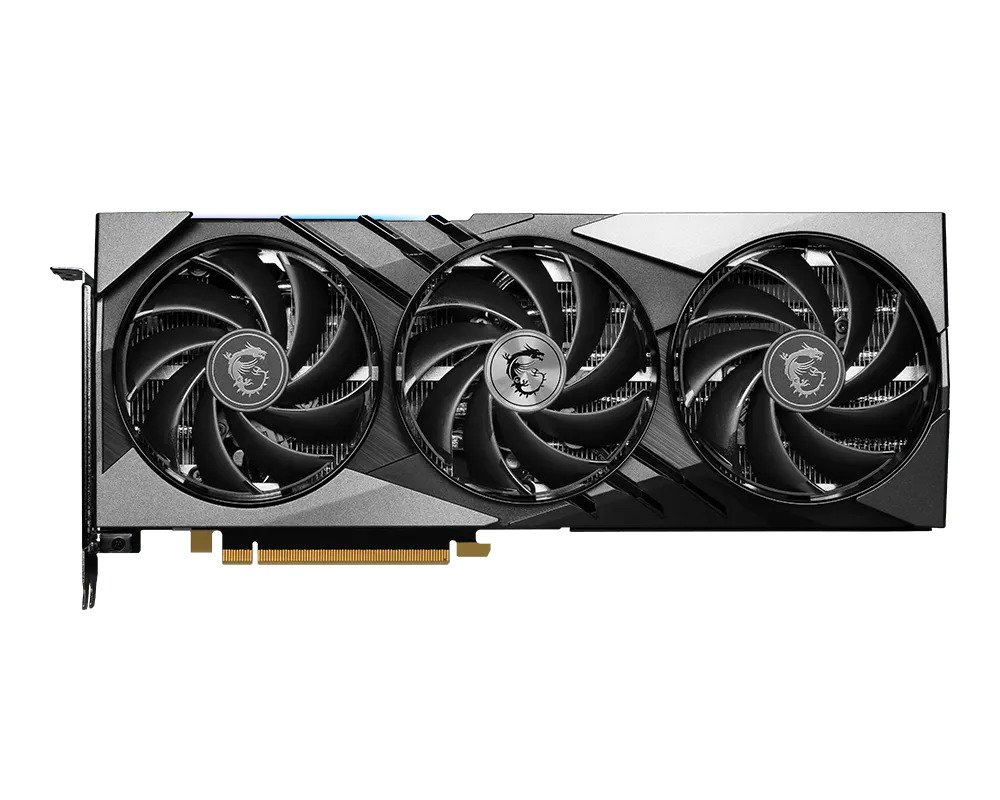

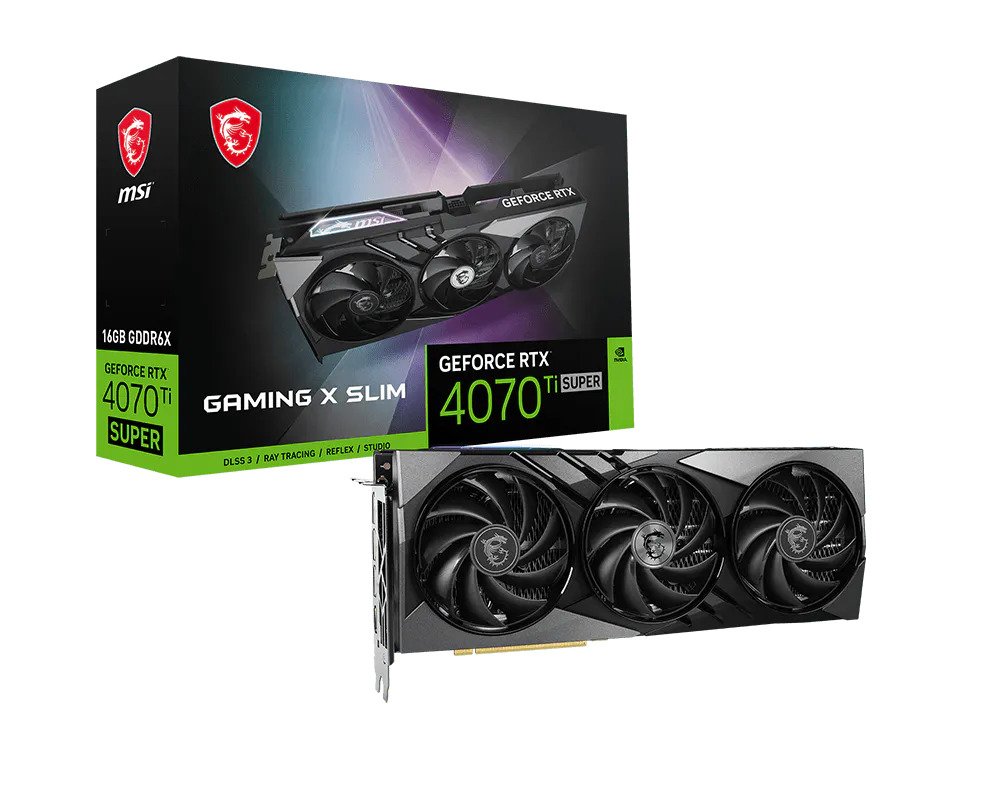

Features Of MSI GeForce RTX 4070 Ti Super Gaming X Slim 16GB
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
WITH DLSS 3
Get equipped for supercharged gaming and creating with the NVIDIA® GeForce RTX™ 4070 TI SUPER. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience super fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
- 2670 MHz / 21 Gbps
- 16GB GDDR6X

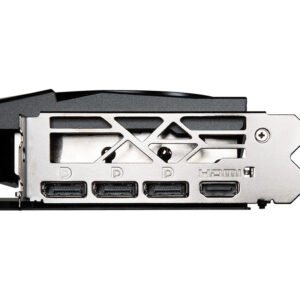

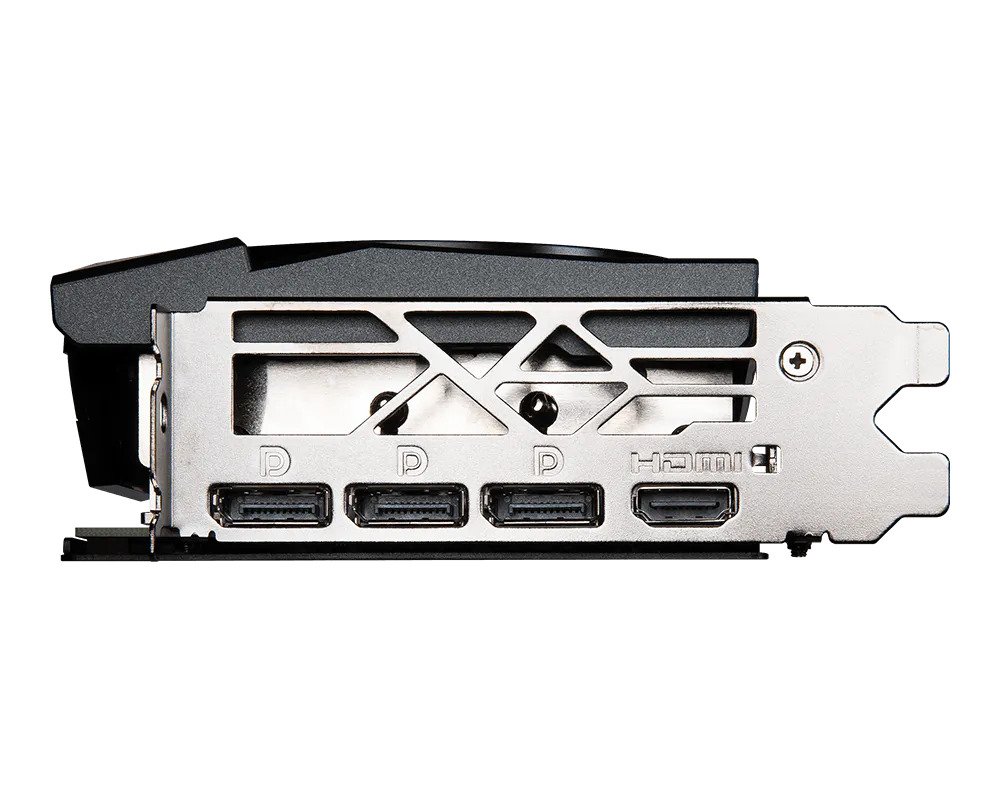

- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
STRENGTH AND MASTERY
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
TRI FROZR 3 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Core Pipe: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.
COPPER BASEPLATE
FACING THE HEAT HEAD-ON
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
KEEPING THE CORE COOL
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the
heatsink.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING

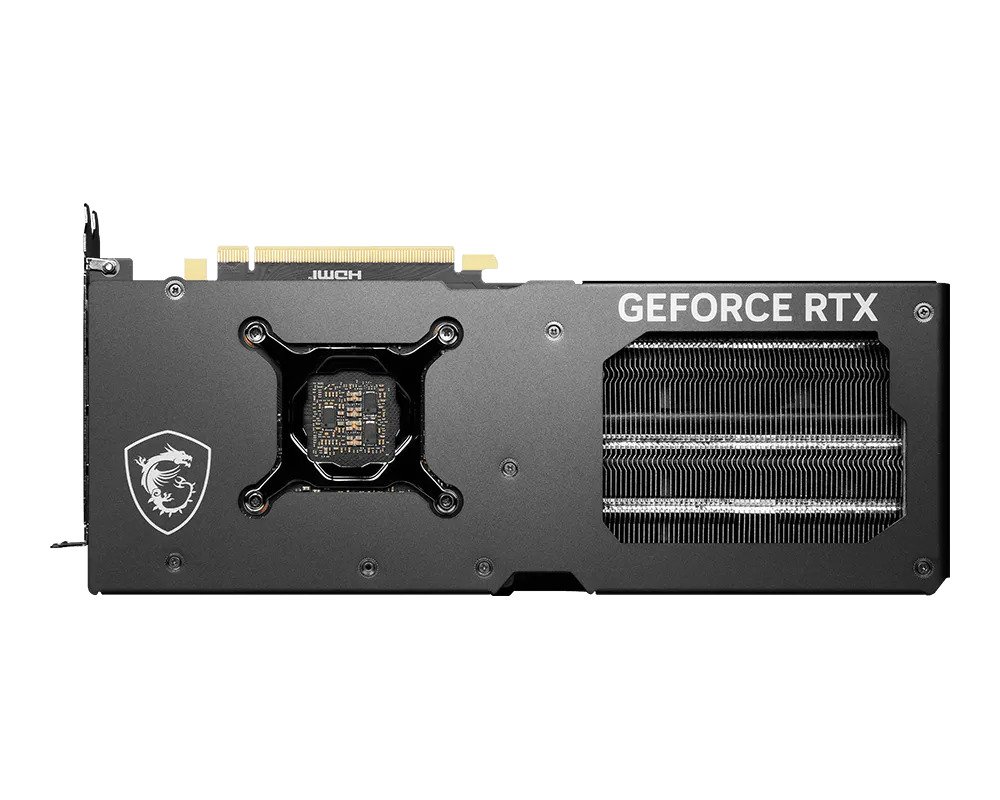

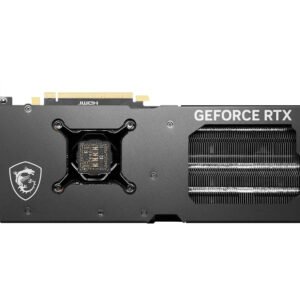

A large airflow vent on the backplate allows exhaust air to pass through directly.
DOUBLE BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
HARDENING EVERY DETAIL
DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Effective Thermal Padding
An abundance of clay-based thermal pads provide additional heat dissipation for board components.
Hardened Defenses
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
YOUR SUPPORT CHARACTE

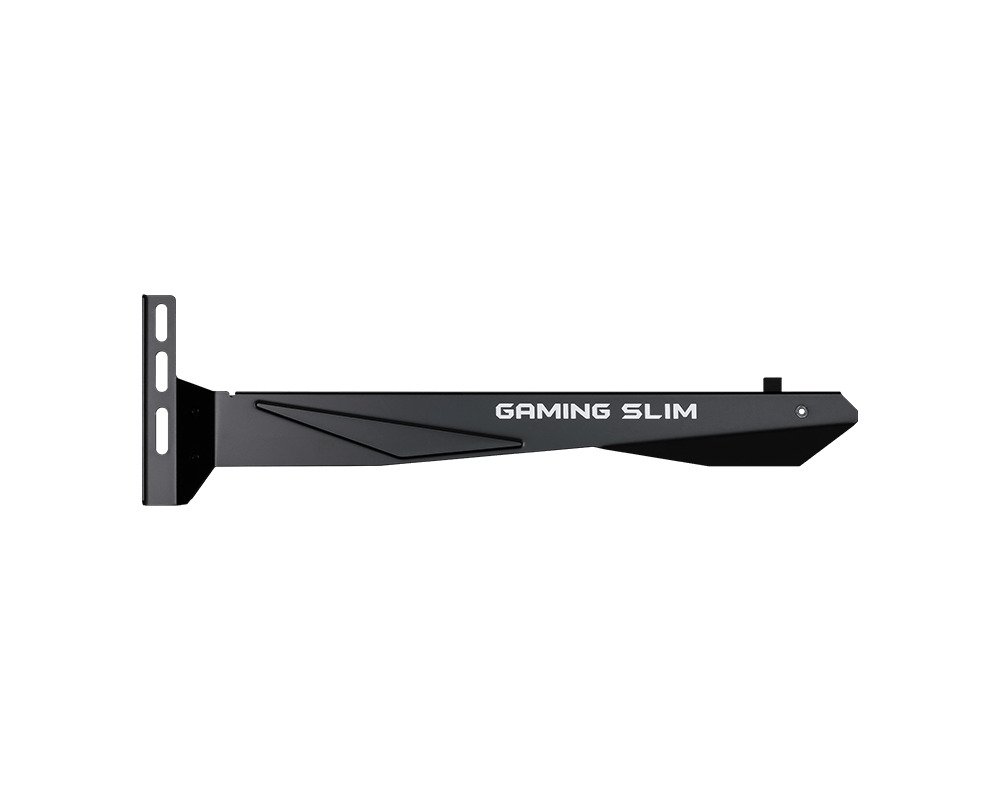

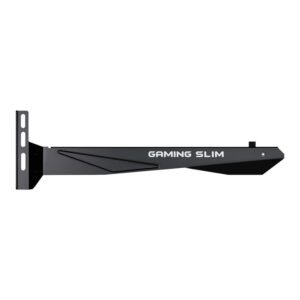

A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
BRINGING IT ALL TOGETHER
Afterburner
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
MSI Centre
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Splash on Some Color
MSI’s exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks.
Specifications Of MSI GeForce RTX 4070 Ti Super Gaming X Slim 16GB
| MODEL NAME | MSI GeForce RTX 4070 Ti SUPER 16G GAMING X SLIM 16GB |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4070 Ti SUPER |
| INTERFACE | PCI Express® Gen 4 |
| CORE CLOCKS | Extreme Performance: 2685 MHz (MSI Center) Boost: 2670 MHz |
| CUDA® CORES | 8448 Units |
| MEMORY SPEED | 21 Gbps |
| MEMORY | 16GB GDDR6X |
| MEMORY BUS | 256-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 285 W |

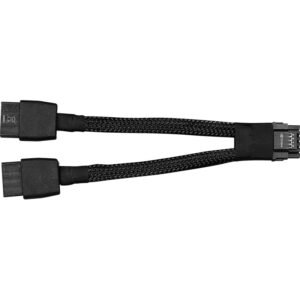

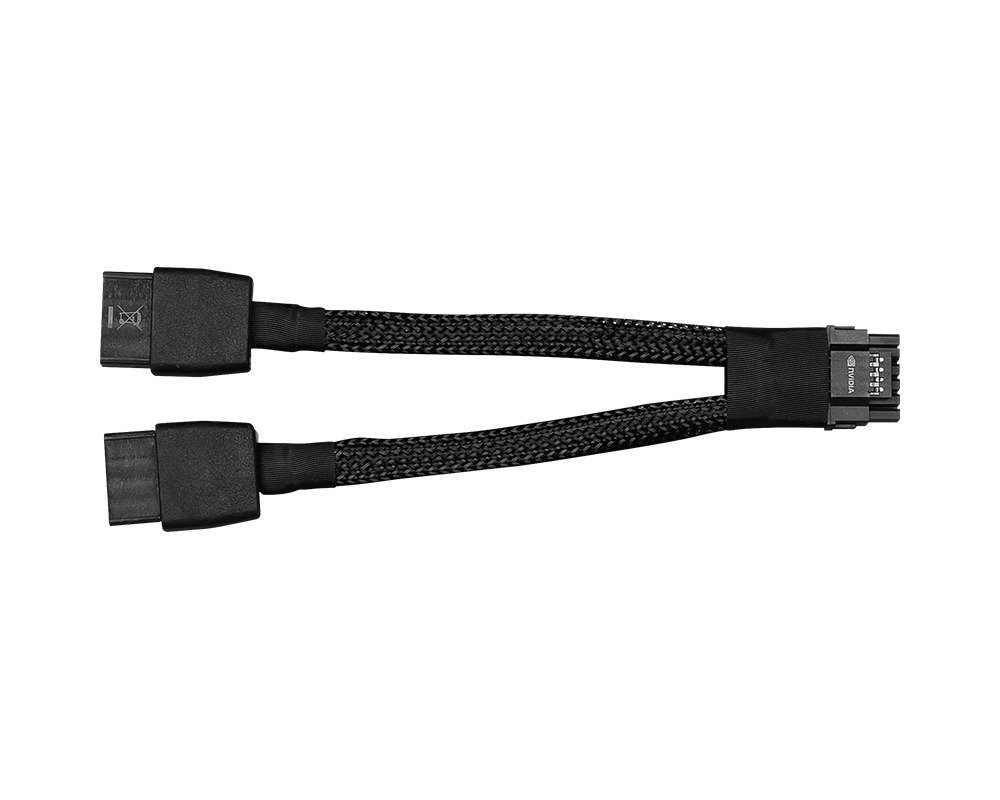

| POWER CONNECTORS | 16-pin x 1 |
| RECOMMENDED PSU | 700 W |
| CARD DIMENSION (MM) | 307 x 125 x 51 mm |
| WEIGHT (CARD / PACKAGE) | 1094 g / 1676 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
